Descritpion:

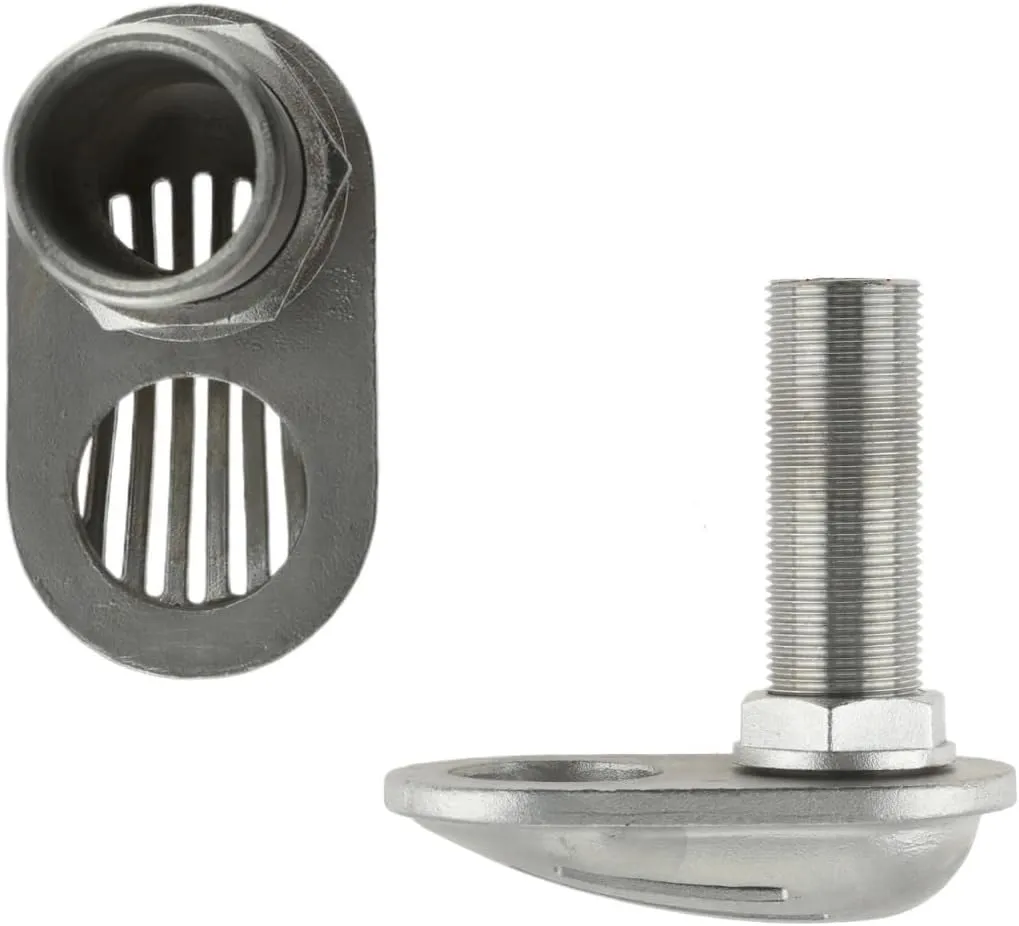

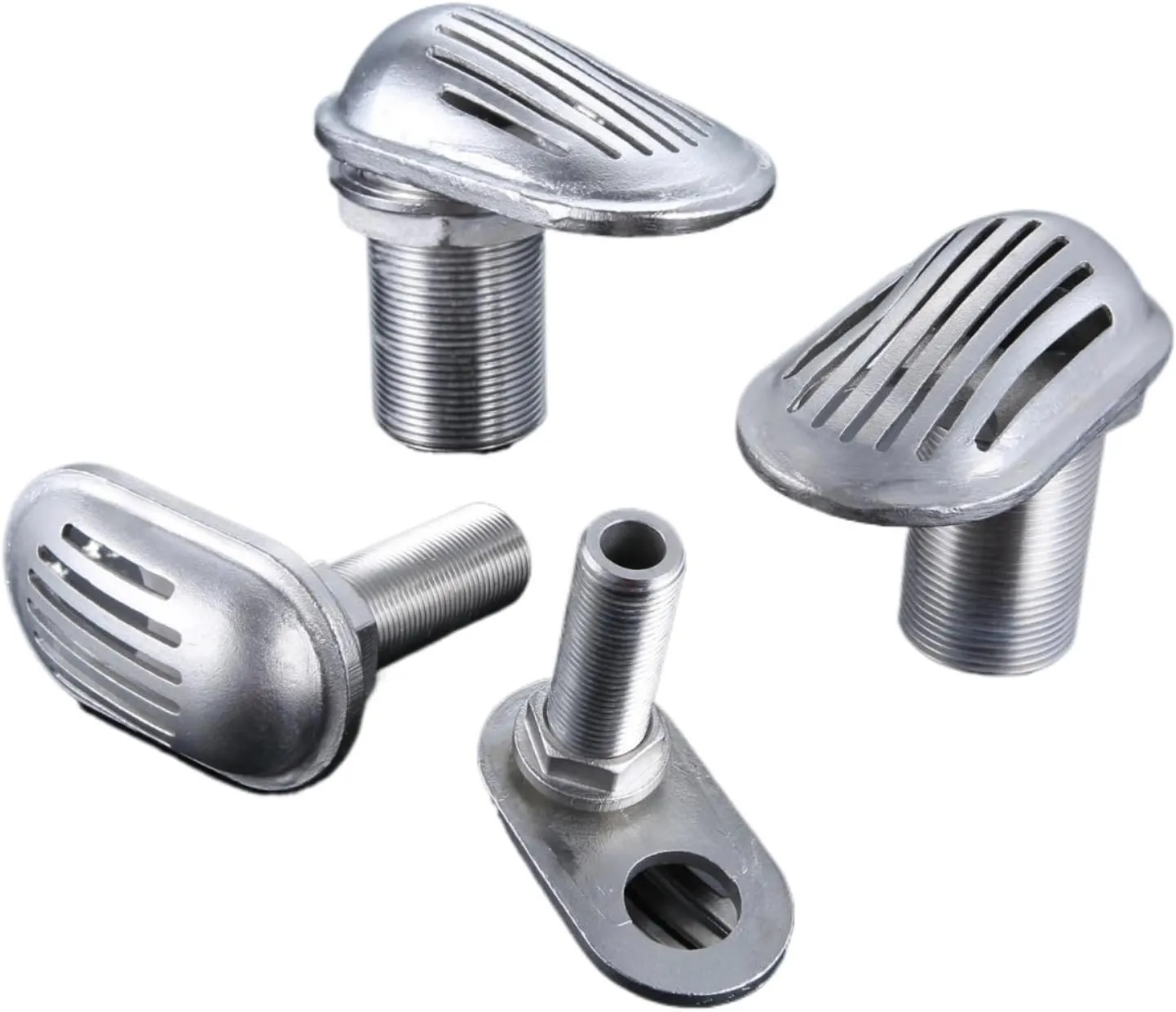

316 stainless steel material precise casting, high corrosionresistant, rustproof, strong and durable.
Maximum corrosion resistance and durability in the saltwater environment.
Can resist the marine environment. can well separate oil and clean it with one wipe, has long service life.

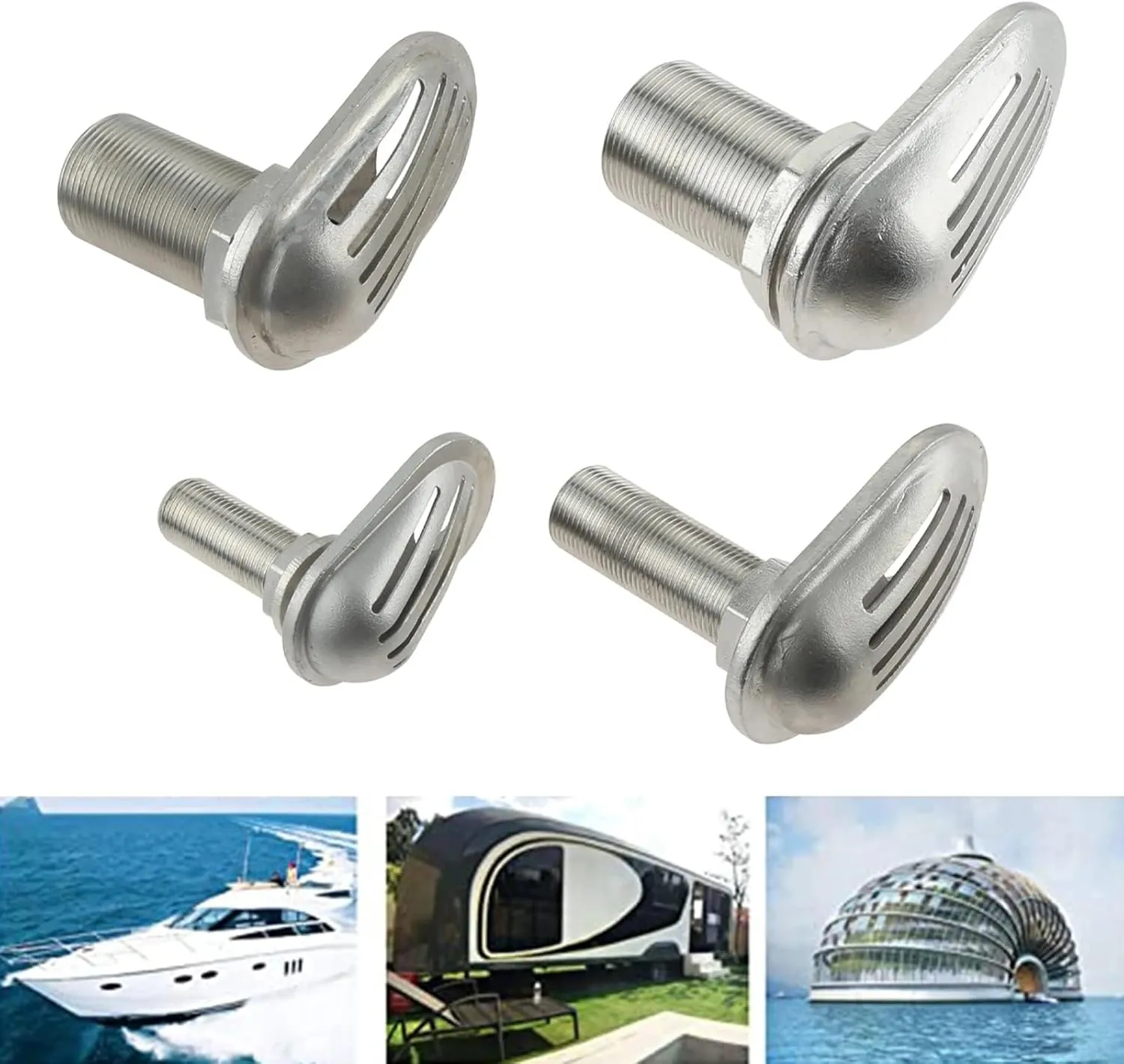

Suitable for marine boat,yacht,kayak etc, a good damage part replacement choice.
Colour: Silver
Material: 316 Stainless steel

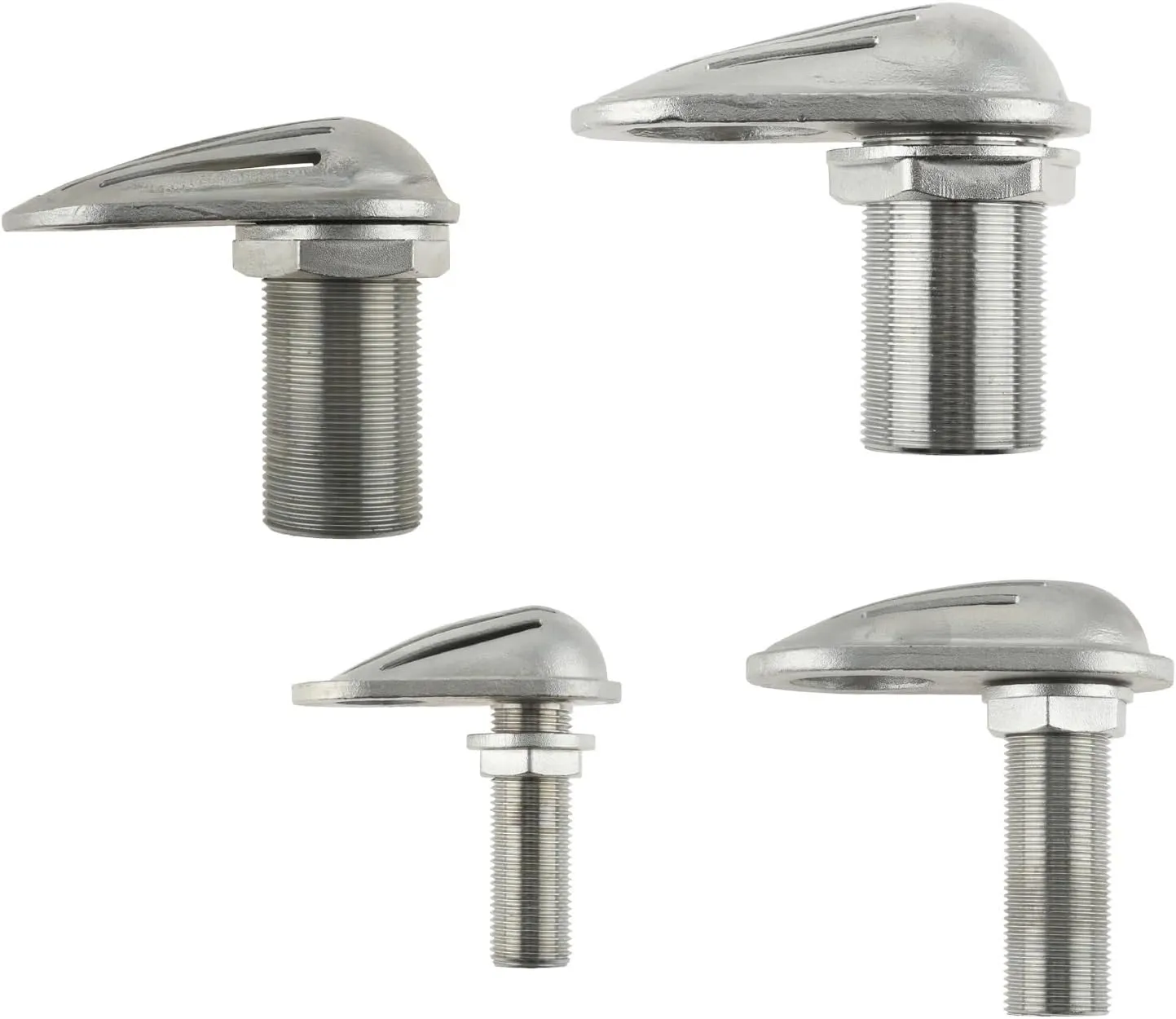

Size: 1/2", 3/4", 1", 1 1/4", 1 1/2".
1/2"Pipe:
Inner Threaded Dia.: Approx. 12.5mm / 0.49"
Outer Threaded Dia.: Approx. 21mm / 0.83"
Threaded Pipe Length: Approx. 66mm / 2.60"
Total Length: Approx. 90mm / 3.54"
Ventilation Hole Size: Approx. 82 x 45mm / 3.23 x 1.77"

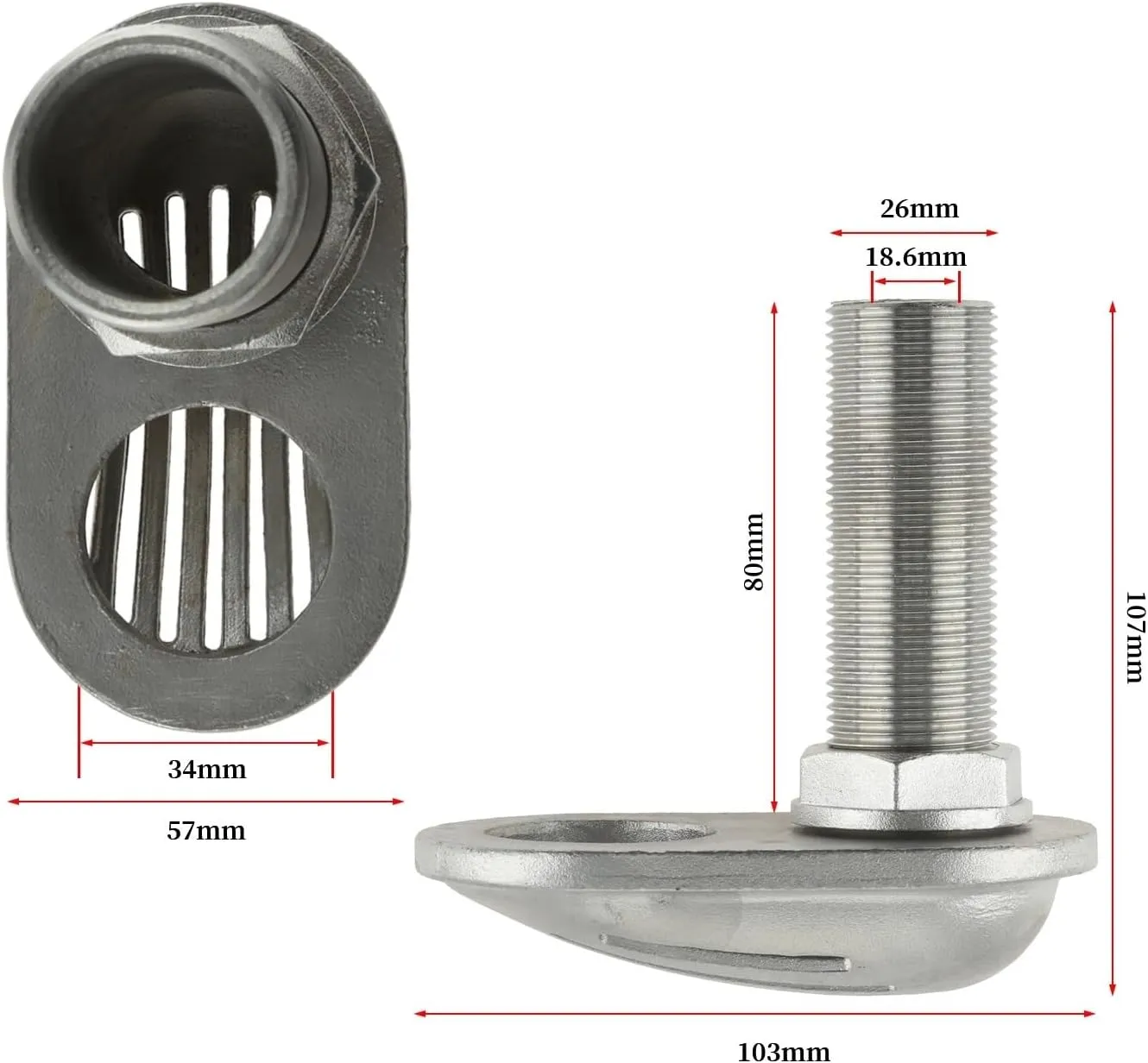

3/4"Pipe:
Inner Threaded Dia.: Approx. 18.60mm /0.73 "
Outer Threaded Dia.: Approx. 26mm / 1.02"
Threaded Pipe Length: Approx. 80mm /3.15"
Total Length: Approx. 107mm / 4.21"
Ventilation Hole Size: Approx. 103 x 57mm / 4.05 x 2.24"
1"Pipe:
Inner Threaded Dia.: Approx. 26mm /1".
Outer Threaded Dia.: Approx. 33mm / 1.3".
Threaded Pipe Length: Approx. 77mm /3.03".
Total Length: Approx. 104mm / 4.1".
Ventilation Hole Size: Approx. 105x58mm / 4.13x2.28". 1 1/4"Pipe:
Inner Threaded Dia.: Approx. 33mm /1.30"
Outer Threaded Dia.: Approx. 42mm / 1.65"
Threaded Pipe Length: Approx. 79mm /3.11"
Total Length: Approx. 106mm / 4.17"
Ventilation Hole Size: Approx. 118 x 65mm / 4.64 x 2.56"
1 1/2"Pipe:
Inner Threaded Dia.: Approx. 38mm /1.50"
Outer Threaded Dia.: Approx. 48mm / 1.89"
Threaded Pipe Length: Approx. 81mm /3.19"
Total Length: Approx. 111mm / 4.37"
Ventilation Hole Size: Approx. 131 x 71mm / 5.16 x 2.80"
Package List:
1 x Boat Intake Strainer
Model Number : Boat Intak
