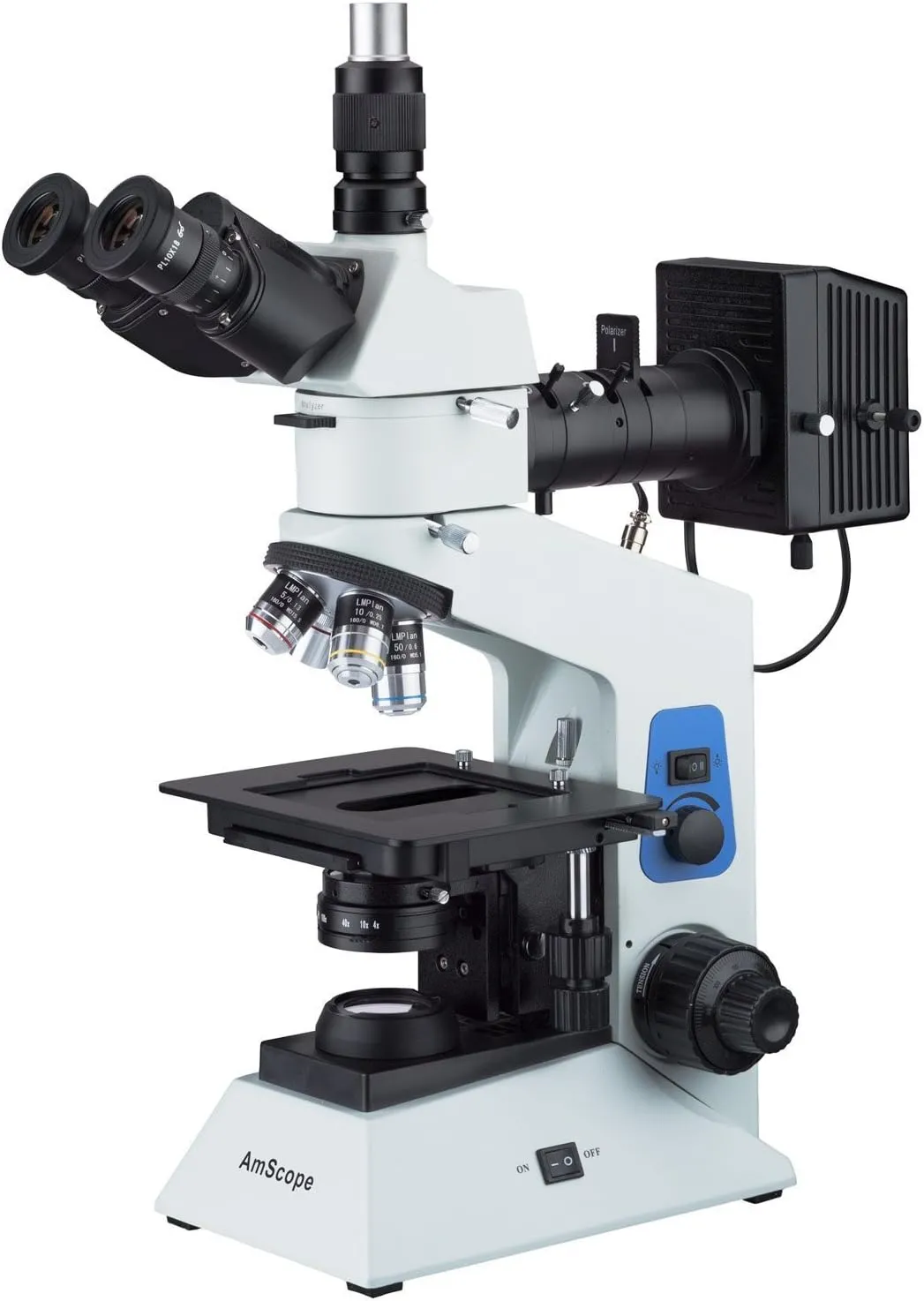

This is a feature-packed, economical metallurgical microscope with an upright design, and both trasmitted and incident illumination. The episcopic illuminator includes removable polarizer and analyzer, as well as adjustable field and aperture diaphragms. The plan-achromatic optical system offers sharp, flat-field images with excellent color-correction. Six magnification settings are provided: three metallurgical (50x, 100X, 500X), and three bright-field (40X, 100X, 400X). The Siedentopf head with dual diopters and high-eyepoint eyepieces provides a comfortable and adjustable viewing platform. There is also a dedicated photo port for simultaneous viewing and imaging.

Features:
- An advanced metallurgical microscopy system with incident and transmitted illumination
- Polarized lighting for structural analysis
- Includes a range of filters for lighting manipulation
- Three metallurgical magnification settings: 50X, 100X, 500X
- Three bright-field magnification settings: 40X, 100X, 400X
- 5X, 10X, and 50X long-working-distance metallurgy plan achromat objectives
- 4X, 10X, 40X achromat objectives
- 10X plan eyepieces for flat-field viewing
- Co-axial coarse & fine focusing system
- 30 degree inclined 360 degree rotatable trinocular head
- Full optical glass elements
- Precise ground glass lens
- All metal mechanical parts
- Coaxial coarse and fine focusing
- Dual focusing control knobs
- Focusing tension control mechanism
- Adjustable interpupillary distance
- Adjustable diopters on both eye tubes
- Solid metal frame construction with stain resistant enamel finish
- Manufactured under ISO 9001 quality control standards
- Excellent five (5) year factory warranty
